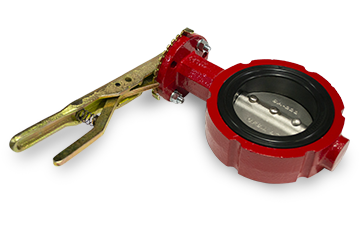

Butterfly Valve 4-inch

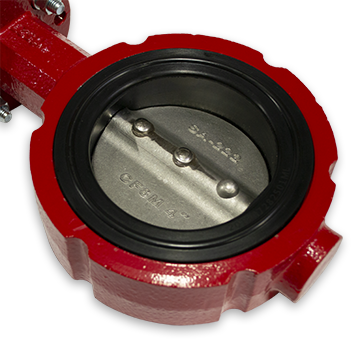

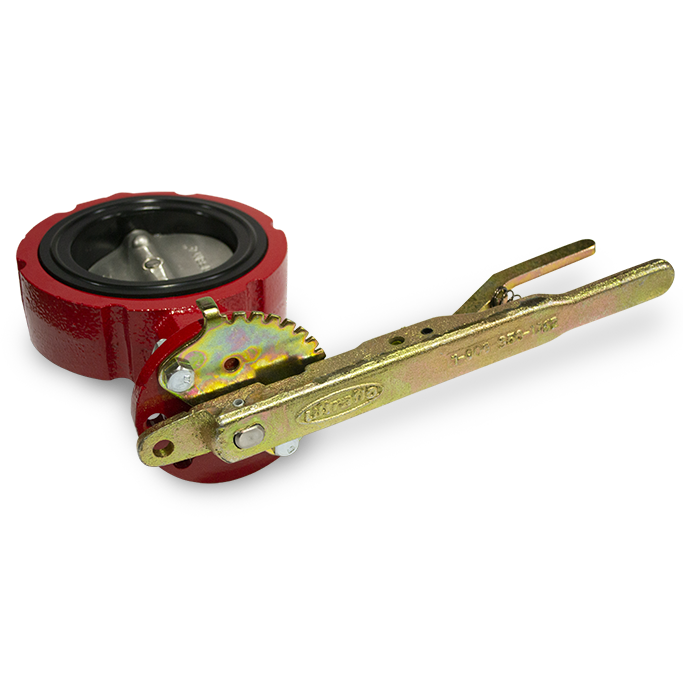

Cast Iron Body, 316 SS Riveted Disc, SS Stem, Black FDA EPDM Seat, w/ Handle
CAD Drawing
Download CADSpecifications
Car Type
PD Car
Manufacturer
Bray
Material
Cast Iron
Size
4"
Valve Type
Butterfly
