Part #: EB786XHHAS6

7/8 x 6-Inch Stainless Steel Eyebolt Assembly with 2 Seal Holes, Heavy Hex Nut

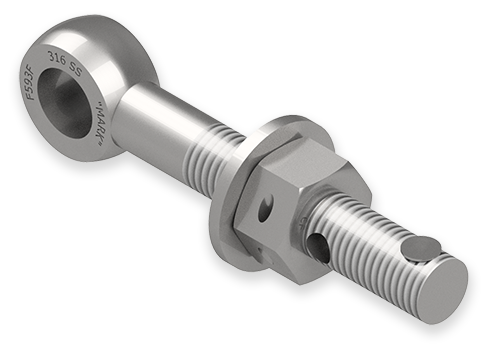

Salco Products (EB786XHHAS6) 7/8 x 6-Inch Stainless Steel Eyebolt Assembly with 2 Seal Holes, Heavy Hex Nut features a 316 stainless steel eyebolt that is 7/8-inch in diameter and 6-inches in length with a 13/32-inch seal hole. The eyebolt has 7/8 -9 UNC -2A rolled threads with the length of 4-inches. The inner diameter of the eye is 15/16-inches, with the outer diameter being 1-3/4-inches. Includes a 7/8-inch, 416 stainless steel, heavy hex nut with a 3/16-inch seal hole, and a 7/8-inch, 316 stainless steel, flat washer with a 2-inch outer diameter. There is a 1/4-inch x 13/16-inch, 304 stainless steel, huck rivet at the end of the threads to prevent the heavy hex nut from coming off.

Key features

Default Feature icon

Fits most OEM Manway configurations.

Default Feature icon

Standard eyebolts can be customized to your specifications.

Default Feature icon

3/4-Inch to 1-Inch diameters available.

Default Feature icon

4-Inch to 7-Inch lengths available.

Default Feature icon

Variety of different safety mechanisms available.

Default Feature icon

Hex and square nuts available.

Specifications

Diameter
7/8"
Length
6"
Material
Stainless Steel
Nut Type
Hex
Safety Feature
Slip Collar
Seal Hole
Yes
