7/8 x 6-Inch Carbon Steel Eyebolt Assembly, Heavy Hex Nut, PTFE Coated

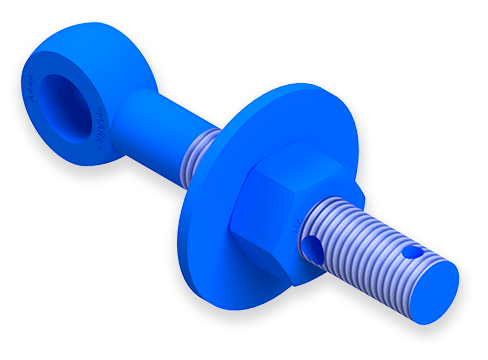

Salco Products (EB786XHAG5T) 7/8 x 6-Inch Carbon Steel Eyebolt Assembly, Heavy Hex Nut, PTFE Coated features a ASTM A449 Type 1 PTFE coated carbon steel eyebolt that is 7/8-inch in diameter and 6-inches in length with a 13/32-inch seal hole. The eyebolt has 7/8-9 UNC -2A rolled threads with the length of 4-inches. The inner diameter of the eye is 15/16-inches, with the outer diameter being 1-3/4-inches. Includes a 7/8-inch, ASTM A194 Grade 2H PTFE coated carbon steel, heavy hex nut, and a 7/8-inch, PTFE coated medium carbon steel, flat washer with a 3-inch outer diameter. PTFE coated before assembly.
Key features
Fits most OEM Manway configurations.
Standard eyebolts can be customized to your specifications.
3/4-Inch to 1-Inch diameters available.
4-Inch to 7-Inch lengths available.
Variety of different safety mechanisms available.
Hex and square nuts available.
