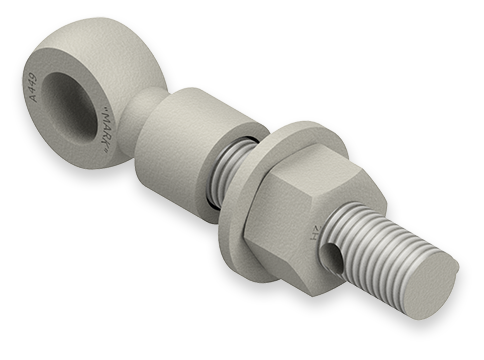

7/8 x 5-1/2-Inch Carbon Steel Eyebolt Assembly with Seal Hole and Safety Collar, Heavy Hex Nut, Lubed
Salco Products (EB7855XHAG5CL) 7/8 x 5-1/2-Inch Carbon Steel Eyebolt Assembly with Seal Hole and Safety Collar, Heavy Hex Nut, Lubed features a ASTM A449 Type 1 carbon steel eyebolt that is 7/8-inch in diameter and 5-1/2-inches in length with a 13/32-inch seal hole. The eyebolt has 7/8 -9 UNC -2A rolled threads with the length of 3-1/2-inches. The inner diameter of the eye is 15/16-inches, with the outer diameter being 1-3/4-inches. Includes a 7/8-inch, ASTM A194 Grade 2H carbon steel, heavy hex nut. A 7/8-inch, medium carbon steel, flat washer with a 2-inch outer diameter, and a 7/8-inch x 1-inch, carbon steel, eyebolt safety collar. There is a bead of weld at the end of the threads to prevent the heavy hex nut from coming off. Pre Lubed with PFPE grease.
Key features
Fits most OEM Manway configurations.
Standard eyebolts can be customized to your specifications.
3/4-Inch to 1-Inch diameters available.
4-Inch to 7-Inch lengths available.
Variety of different safety mechanisms available.
Hex and square nuts available.
