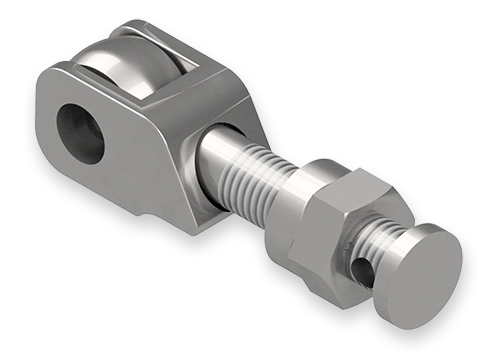

7/8 x 5-1/16 Inch Stainless Steel Eyebolt Assembly with Safety Catch and Seal Hole, Heavy Hex Ferrule Nut
Salco Products (EB78516HSNSC) 7/8 x 5-1/16-inch Stainless Steel Eyebolt Assembly with Safety Catch and Seal Hole, Heavy Hex Ferrule Nut features a 316 stainless steel eyebolt that is 7/8-inch in diameter and 5-1/16-inches in length with a 13/32-inch seal hole. The eyebolt has 7/8 -9 UNC -2A rolled threads with the length of 3-1/16-inches. The inner diameter of the eye is 13/16-inches, with the outer diameter being 1-3/4-inches. Includes a 7/8-inch, 416 stainless steel, heavy hex ferrule nut, and a 7/8-inch x 2-3/4-inch, 316 stainless steel eyebolt safety catch. There is a, 304 stainless steel, ferrule nut welded at the end of the threads to prevent the heavy hex ferrule nut from coming off.
Key features
Fits most OEM Manway configurations.
Standard eyebolts can be customized to your specifications.
3/4-Inch to 1-Inch diameters available.
4-Inch to 7-Inch lengths available.
Variety of different safety mechanisms available.
Hex and square nuts available.
