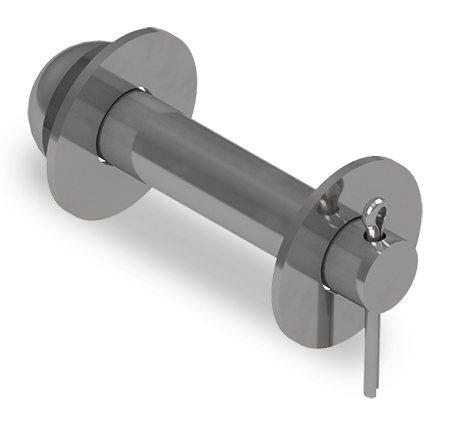

7/8 x 4-1/2-Inch Stainless Steel Button Head Rod
Salco Products (BHR7845HS6A) 7/8 x 4-1/2-Inch Stainless Steel Button Head Rod features a 7/8-inch by 4-1/2-inch, 316 stainless steel, button head rod with two (2) 7/8-inch, 316 stainless steel, flat washers, and a 3/16-inch by 2 inch, 316 stainless steel, cotter pin. 7/8-inch button head rod is made to fit 7/8-inch and 1-inch eyebolts.
CAD Drawing
Download CADKey features
Available in Carbon and Stainless Steel.
Eliminates the need for a hammer and chisel, cutting torch, and hot-work permit.
Cotter pins allow for simple maintenance.
Assemblies include cotter pin and washers.
Significantly reduces time and labor.
Buttonhead Rods are used to secure domelid eyebolts to the manway nozzle and are available in a variety of sizes.
Specifications
Diameter
7/8"
Length
4 1/2"
Material
Stainless Steel
