4-Inch Thread On Ductile Iron Quick Connect Assembly, Black Viton A Gasket

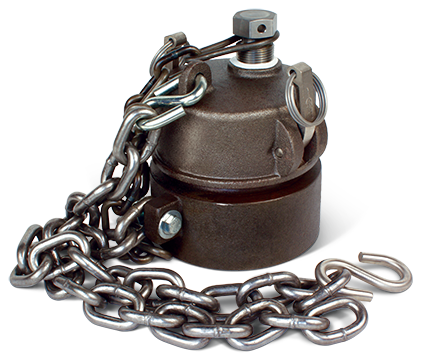

Salco Products (K4IU6A) 4-Inch Thread On Ductile Iron Quick Connect Assembly, Black Viton A Gasket fits a 5-1/4-inch rail road thread. The quick connect adapter is 6-1/2-inches high, made out of ductile iron, and features a 4-inch cam groove. Includes a 3/8-inch, carbon steel, chain with 15 links; 3/8-inch by 3-1/2-inch zinc plated carbon steel S-hook, 3/8-inch -16 by 1-3/4-inch, zinc plated carbon steel, hex bolt; 3/8-inch -16, zinc plated carbon steel nut, and 3/8-inch, zinc plated carbon steel flat washer. Comes with a black Viton A gasket. The 4-inch, quick connect, cammed cap is made out of ductile iron with 304 stainless steel straight cam arms. Features a 1-inch NPT, carbon steel, plug assembly with 1/4-inch, carbon steel, swivel link and 15 chain links, approximate length of 19-inches. The cap includes two (2), zinc plated carbon steel, 3/8-inch by 3-1/2-inch S-hooks and 3/8-inch, 18-8 carbon steel chain with 15 links, approximate length of 21-inches. Cap comes with a black Viton A gasket. AAR Approval # E-232133. Not Approved for DOT Stenciled Cars.
CAD Drawing
Download CADKey features
Provides direct connection to kam and grooved hoses or adapters, no additional components required.
3", 4" and 6" sizes.
Reducing Flanges available.
Designed to provide a secure fitting that will minimize leaks and spills.
DOT (threaded) and AAR (kammed) approved designs.
Assemblies include adapter, cap, plug, chain and gaskets.
Available in Stainless Steel or Ductile Iron.
Contact your Salco Representative for the specific adapter types and sizes that will fit your needs.
Specifications
AAR Approval
