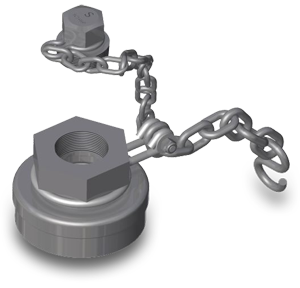

4-Inch Stainless Steel Bottom Outlet Cap with Stainless Steel Chain
The Salco Products (TC4BCSSA) 4-Inch Stainless Steel Bottom Outlet Cap with Stainless Steel Chain is made out of 304 stainless steel with a 2-inch, 416 stainless steel, plug. It fits a standard 5-1/4-inch railroad thread for application to any car manufacturer’s nozzle. Comes with 3/8-inch, 18-8 stainless steel, chain with 16 links, a 4-inch, 304 stainless steel, lock ring, a 3/8 by 2-1/4-inch, 18-8 stainless steel, hex bolt, a 3/8-inch, 18-8 stainless steel, hex nut lock, 2 (two) 3/8-inch USS, 18-8 stainless steel, flat washers, and a 3/8 by 3-1/2-inch, 18-8 stainless steel, S hook. A broad range of gasket material options allows for use in various commodities, not included.
Key features
AAR Approved.
Available in ductile iron or stainless steel.
Gasket material available in Buna-N, EPDM, Butyl, Viton A, and Neoprene (red, black, or white).
Available in a variety of bolt patterns to fit any style 4-inch ball valve.
Ask your Stucki representative about other gasket materials Stucki can provide.
Specifications
Resources
