4-Inch Flanged Stainless Steel Quick Connect Assembly, Black EPDM Gasket

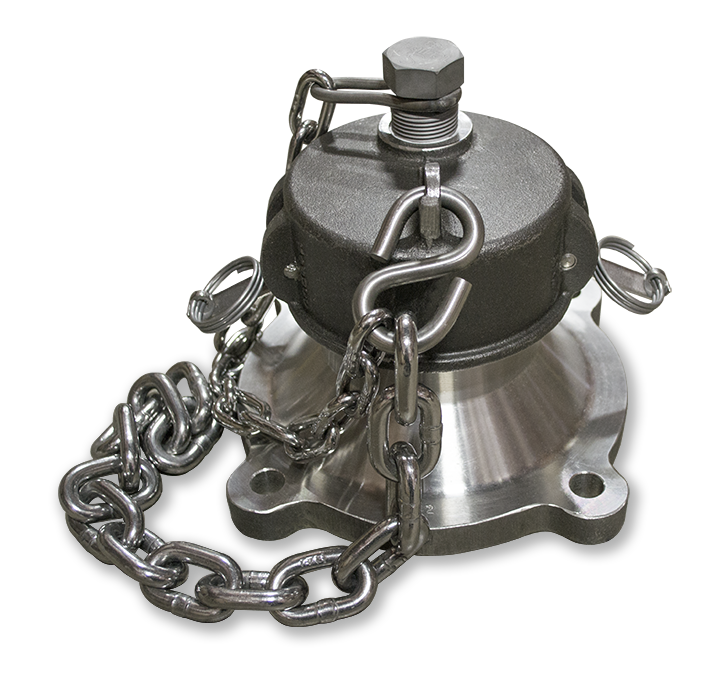

Salco Products (K4SWF3A) 4-Inch Flanged Stainless Steel Quick Connect Assembly, Black EPDM Gasket fits a 6-inch wafer butterfly valve with four (4) 21/32-inch bolt holes on a 9-inch bolt circle. The quick connect adapter is made out of 316 stainless steel, and features a 4-inch cam groove. Comes with a black EPDM gasket. The 4-inch, quick connect, cammed cap is made out of 316 stainless steel with 304 stainless steel straight cam arms. Features a 1-inch male NPT, 416 stainless steel, plug assembly with 3/8-inch, 18-8 stainless steel, chain link with 15 links, and two (2) 3/8-inch by 3-1/2-inch, 18-8 stainless steel, S-hooks. Cap comes with a black EPDM gasket. AAR Approval # E-139514, Not Approved for DOT Stenciled Cars
CAD Drawing
Download CADKey features
Provides direct connection to kam and grooved hoses or adapters, no additional components required.
3", 4" and 6" sizes.
Reducing Flanges available.
Designed to provide a secure fitting that will minimize leaks and spills.
DOT (threaded) and AAR (kammed) approved designs.
Assemblies include adapter, cap, plug, chain and gaskets.
Available in Stainless Steel or Ductile Iron.
Contact your Salco Representative for the specific adapter types and sizes that will fit your needs.
