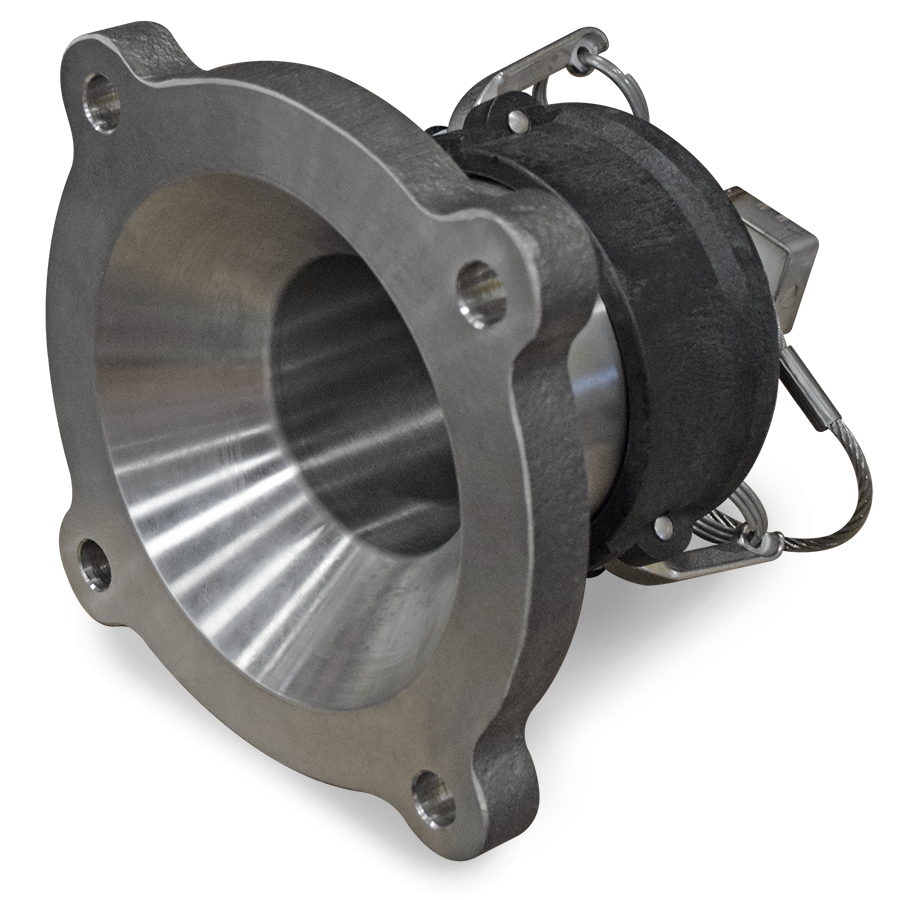

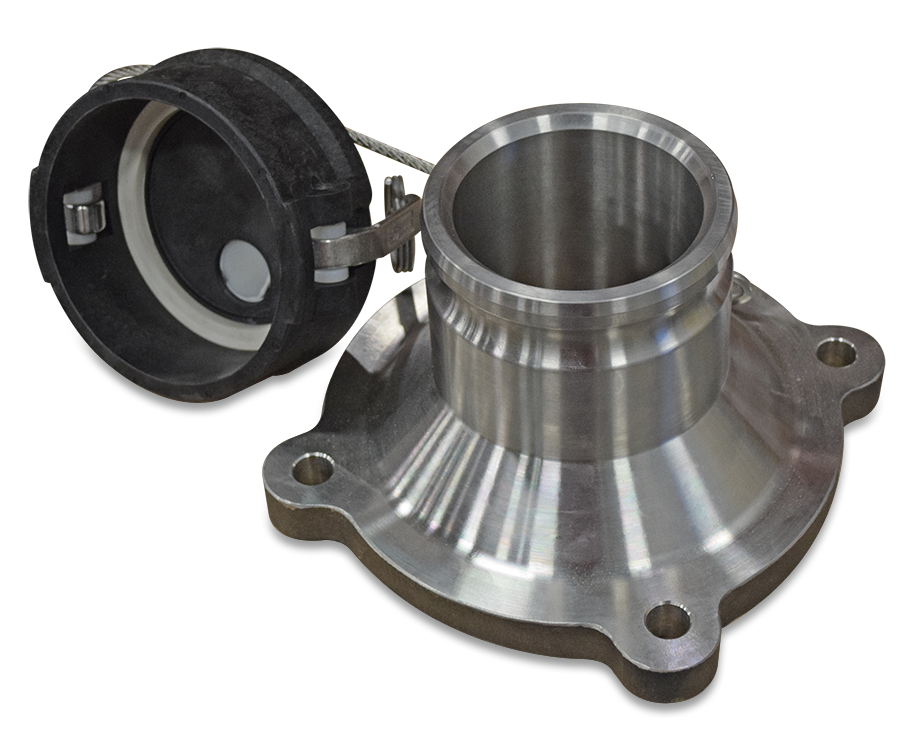

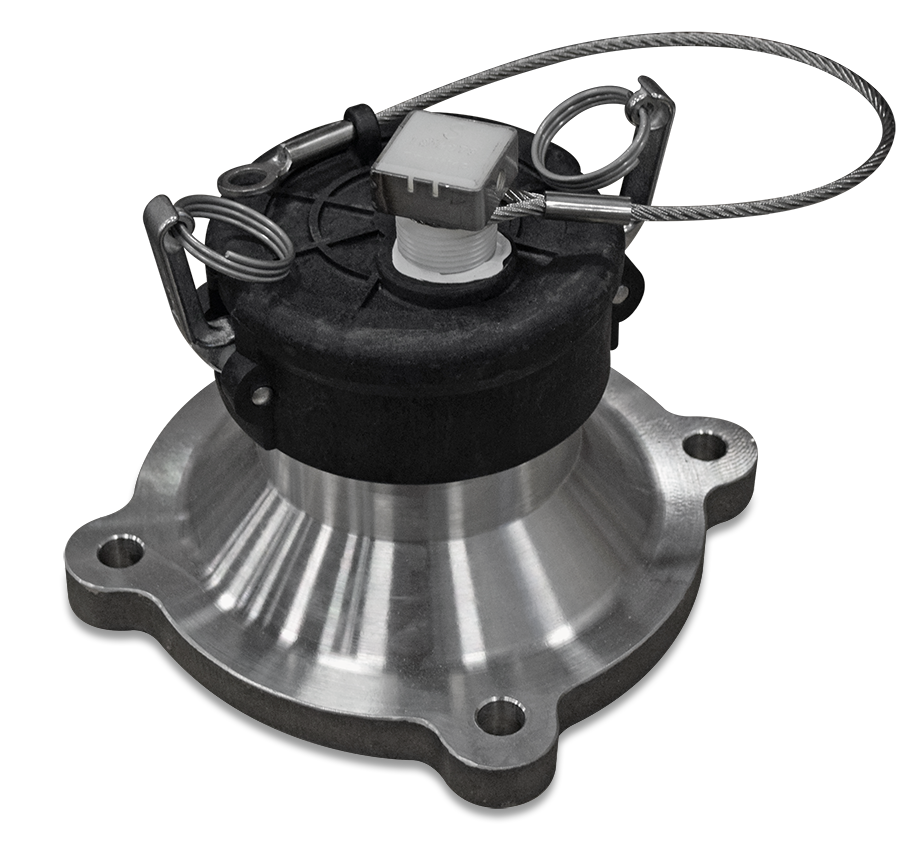

4-Inch Flanged Stainless Steel and Nylon Quick Connect Assembly, White FDA Nitrile Gaskets
Salco Products (K4NYSWF2A) 4-Inch Flanged Stainless Steel and Nylon Quick Connect Assembly, White FDA Nitrile Gaskets fits a 6-inch wafer butterfly valve with four (4) 21/32-inch bolt holes on a 9-inch bolt circle. The quick connect adapter is made out of 316 stainless steel, and features a 4-inch cam groove. The 4-inch, quick connect, cammed cap is made out of nylon with 304 stainless steel straight cam arms. Features a 1-inch NPT nylon plug assembly with 1/4-inch, zinc plated carbon steel, repair link, and a 3/16-inch by 17-inch stainless steel cable. Cap and flange come with a White FDA Nitrile gasket. AAR Adapter Approval # E-139514, Cap Approval # E-139515, Not Approved for DOT Stenciled Cars.
CAD Drawing
Download CADKey features
Provides direct connection to kam and grooved hoses or adapters, no additional components required.
3", 4" and 6" sizes.
Reducing Flanges available.
Designed to provide a secure fitting that will minimize leaks and spills.
DOT (threaded) and AAR (kammed) approved designs.
Assemblies include adapter, cap, plug, chain and gaskets.
Available in Stainless Steel or Ductile Iron.
Contact your Salco Representative for the specific adapter types and sizes that will fit your needs.
