4-Inch Flanged Stainless Steel and Nylon Quick Connect Assembly, Black Viton A Gasket

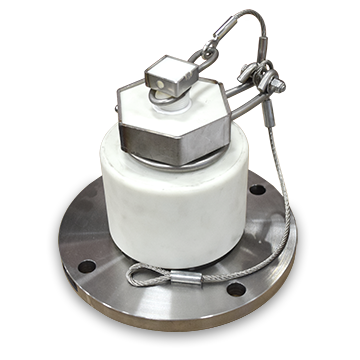

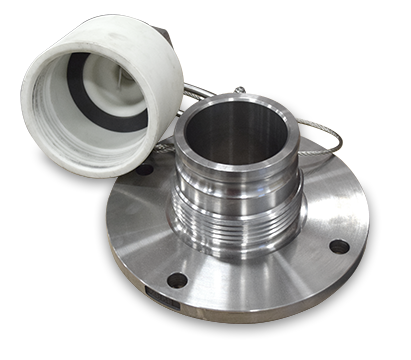

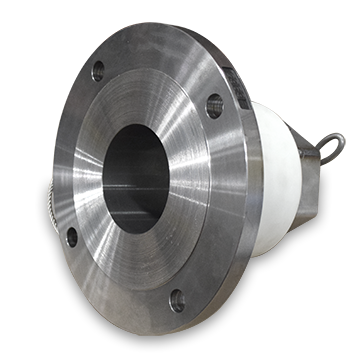

Salco Products (TE4NYITUF06A) 4-Inch Flanged Stainless Steel and Nylon Quick Connect Assembly, Black Viton A Gasket fits a 4-inch ball valve with four (4) 3/4-inch bolt holes on a 9-inch bolt circle. The quick connect flanged adapter is made out of 316 stainless steel. It features a 4-inch cam groove and 5-1/4-inch -4 Special -2A threads. The 4-inch, quick connect, thread on cap is made out of Nylon 6/6 with a stainless steel hex protector and features 5-1/4-inch -4 UN -2B threads. The 1-inch NPT plug assembly is made out of Nylon 6/6 and features a stainless steel head protector. The plug assembly includes a 3/16-inch, 304 stainless steel, cable assembly. The thread on nylon cap comes with a 3/16-inch by 15-1/2-inch, 18-8 stainless steel, cable assembly, a 4-inch, 18-8 stainless steel, lock ring, a 3/8-inch by 2-inch, 18-8 stainless steel hex bolt, a 3/8-inch, 18-8 stainless steel, hex lock nut and two (2) 3/8-inch SAE, 18-8 stainless steel flat washers. The quick connect assembly is about 8-inches high and comes with a Black Viton A Gasket for the cap. AAR Approval # E-149523. Approved for DOT Stenciled Cars.
CAD Drawing
Download CADKey features
Provides direct connection to kam and grooved hoses or adapters, no additional components required.
3", 4" and 6" sizes.
Reducing Flanges available.
Designed to provide a secure fitting that will minimize leaks and spills.
DOT (threaded) and AAR (kammed) approved designs.
Assemblies include adapter, cap, plug, chain and gaskets.
Available in Stainless Steel or Ductile Iron.
Contact your Salco Representative for the specific adapter types and sizes that will fit your needs.
Specifications
AAR Approval
