4-Inch Flanged Ductile Iron Quick Connect Assembly, Black Viton A Gasket

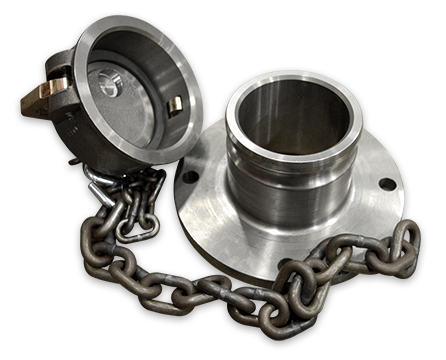

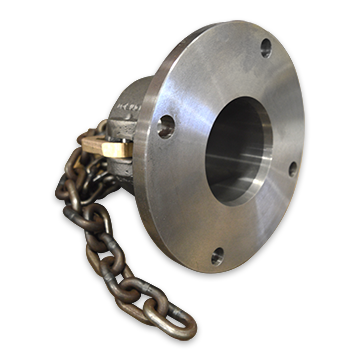

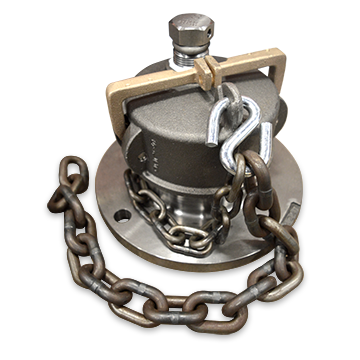

Salco Products (K4ITCUF06A) 4-Inch Flanged Ductile Iron Quick Connect Assembly, Black Viton A Gasket fits a 4-inch ball valve with four (4) 11/16-inch bolt holes on a 7-3/4-inch bolt circle. The flange is made out of ductile iron and features a 4-inch cam groove. The 4-inch, quick connect, cammed cap is made out of ductile iron with bronze cross over cam arms. Features a 1-inch male NPT, carbon steel, plug assembly with 1/4-inch, carbon steel, swivel link and 15 chain links with an approximate length of 19-inches. The cap includes two (2), zinc plated carbon steel, 3/8-inch by 3-1/2-inch S-hook, and 3/8-inch, carbon steel, chain of 15 links with an approximate length of 21-inches. Cap comes with a black Viton A gasket. AAR Approval # E-139514. Not Approved for DOT Stenciled Cars.
CAD Drawing
Download CADKey features
Provides direct connection to kam and grooved hoses or adapters, no additional components required.
3", 4" and 6" sizes.
Reducing Flanges available.
Designed to provide a secure fitting that will minimize leaks and spills.
DOT (threaded) and AAR (kammed) approved designs.
Assemblies include adapter, cap, plug, chain and gaskets.
Available in Stainless Steel or Ductile Iron.
Contact your Salco Representative for the specific adapter types and sizes that will fit your needs.
