3-Inch Thread On Ductile Iron Top Fitting Assembly, Viton GF-600S Gasket

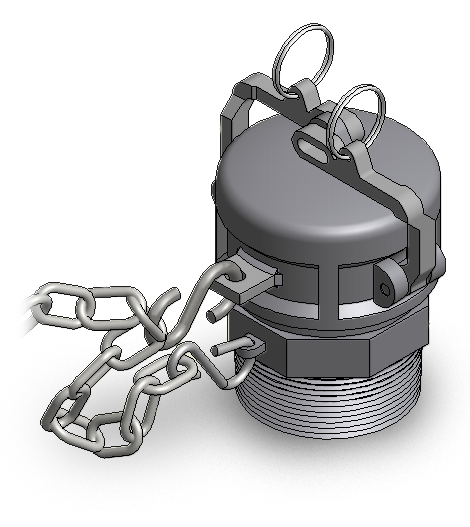

Salco Products (K30ICUMP12A) 3-Inch Thread On Ductile Iron Top Fitting Assembly, Viton GF-600S Gasket fits a 3-inch female NPT. Features a 3-inch, ductile iron, cam groove adapter with a 3-inch NPT. Includes a, zinc plated carbon steel, S-hook that’s 3/16-inch by 2-inches, and a 3/16-inch, zinc plated carbon steel, chain link with 7 links. The 3-inch cammed dust cap is made out of ductile iron with stainless steel cross over arms. The dust cap includes two (2), zinc plated carbon steel, 1/4-inch S-hooks, and a 3/16-inch, zinc plated carbon steel, chain link with 21 links. Cap gasket material is Viton GF-600S.
CAD Drawing
Download CADKey features
Provides direct connection to kam and groove or threaded hoses.
1", 2" and 3" sizes.
Dual Thread design has cap closure on separate threads, extending the life of the hose connection NPT by 50%.
Designed to provide a secure fitting that will minimize leaks and spills.
DOT (threaded) and AAR (kammed) approved designs.
Assemblies include adapter, cap, chain and gaskets.
Available in Stainless Steel or Ductile Iron.
416SS cap with 316SS adapter to prevent galling.
Contact your Salco Representative for the specific adapter types and sizes that will fit your needs.
