Part #: K30IUMP1A

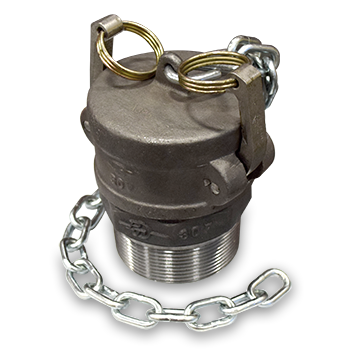

3-Inch Thread On Ductile Iron Top Fitting Assembly, Black Nitrile Gasket

Salco Products (K30IUMP1A) 3-Inch Thread On Ductile Iron Top Fitting Assembly, Black Nitrile Gasket fits a 3-inch female NPT. Features a 3-inch, ductile iron, cam groove adapter with a 3-inch male NPT. Includes a, zinc plated carbon steel, S-hook that’s 3/16-inch by 2-inches, and a 3/16-inch, zinc plated carbon steel, chain link with 7 links. The 3-inch cammed dust cap is made out of ductile iron with stainless steel straight arms. The dust cap includes a, zinc plated carbon steel, 1/4-inch S-hook, and a 3/16-inch, zinc plated carbon steel, chain link with 21 links. Cap gasket material is Black Nitrile.

Default CAD icon
CAD Drawing
Download CAD

Specifications

Adapter Material
Ductile Iron
Cap Material
Ductile Iron
Gasket Material
Black Nitrile
Location
Top
Size
3"
