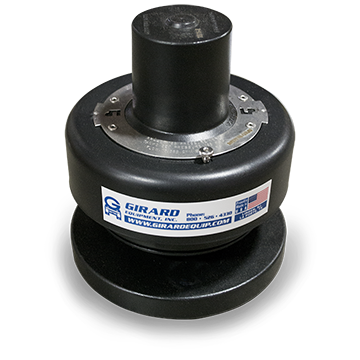

165 psi Girard Geliner Vent, Teflon Lined 316L Stainless Steel with Viton B O-Ring, (4) 3/4 inch Bolt Holes on 6-1/4 inch Bolt Circle
Raised Face Flange, AAR# E172101
Key features
Girard's popular 407 Series pressure relief valve is now available for use in standard service applications.
Girard patented pressure relief valves relieve excess pressure, that would otherwise create a hazardous condition in a tank car, safely and reliably.
Body constructed of investment-cast 316L stainless steel.
Quick disassembly feature designed for ease of maintenance.
100% stainless steel and PTFE construction.
Release pressure up to 165 PSIG.
Flow Ratings: 165 PSI / Flow rate: 13,355 SCFM @ 182 PSI
75 PSI / Flow rate: 8,586 SCFM @ 85 PSI
Rugged, low profile design.
Comes in standard flange styles. Other flange options available upon request.
AAR approved.
Specifications
- Black Viton B
- Viton B
