1 x 5-Inch Stainless Steel Eyebolt Assembly with Pin and Seal Hole, Heavy Square Nut

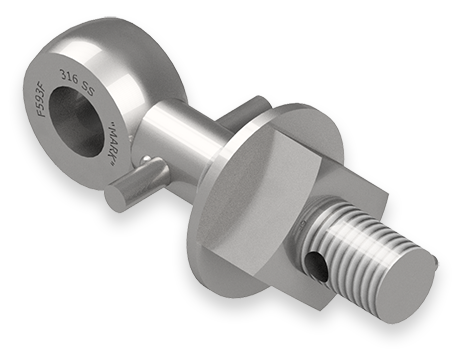

Salco Products (EB15HAS6P) 1 x 5-Inch Stainless Steel Eyebolt Assembly with Pin and Seal Hole, Heavy Square Nut features a 316 stainless steel eyebolt that is 1-inch in diameter and 5-inches in length with a 3/8-inch x 2-1/2-inch 316 stainless steel pin, and a 13/32-inch seal hole. The eyebolt has 1-8 UNC -2A rolled threads with the length of 3-inches. The inner diameter of the eye is 15/16-inches, with the outer diameter being 2-inches. Includes a 1-inch, 416 stainless steel, heavy square nut, and a 1-inch, 316 stainless steel, flat washer with a 2-1/2-inch outer diameter. There is a bead of weld at the end of the threads to prevent the heavy square nut from coming off.
Key features
Fits most OEM Manway configurations.
Standard eyebolts can be customized to your specifications.
3/4-Inch to 1-Inch diameters available.
4-Inch to 7-Inch lengths available.
Variety of different safety mechanisms available.
Hex and square nuts available.
