1-Inch Thread On Stainless Steel Top Fitting Assembly, White FDA EPDM Gasket

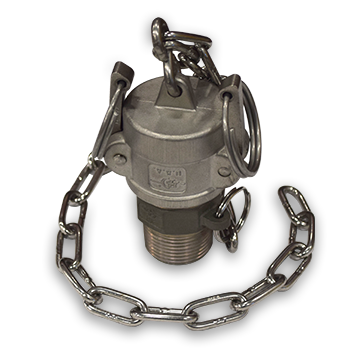

Salco Products (K10SUMP230A) 1-Inch Thread On Stainless Steel Top Fitting Assembly, White FDA EPDM Gasket fits a 1-inch female NPT. Features a 1-inch cam groove, 316 stainless steel, adapter with a 1-inch male NPT. Includes a 304 stainless steel, 1-inch split ring, and a 1/8-inch, 18-8 stainless steel, chain link with 7 links. The 1-inch cammed dust cap is made out of 316 stainless steel with 316 stainless steel straight arms. The dust cap includes two 304 stainless steel S-hooks that are 3/16-inch by 1-1/2-inches, and a 1/8-inch, 18-8 stainless steel, chain link with 21 links, that’s approximately 19-inches long. Cap gasket material is peroxide cured white FDA EPDM.
CAD Drawing
Download CADKey features
Provides direct connection to kam and groove or threaded hoses.
1", 2" and 3" sizes.
Dual Thread design has cap closure on separate threads, extending the life of the hose connection NPT by 50%.
Designed to provide a secure fitting that will minimize leaks and spills.
DOT (threaded) and AAR (kammed) approved designs.
Assemblies include adapter, cap, chain and gaskets.
Available in Stainless Steel or Ductile Iron.
416SS cap with 316SS adapter to prevent galling.
Contact your Salco Representative for the specific adapter types and sizes that will fit your needs.
Specifications
Resources
